A novel restriction endonuclease GlaI recognizes methylated sequence 5’-G(5mC)^GC-3’



This email address is being protected from spambots. You need JavaScript enabled to view it. , Tatyana N. Najakshina, Murat A. Abdurashitov, Julia E. Tomilova, Nina V. Mezentzeva, Vladimir S. Dedkov, Natalya A. Mikhnenkova, Danila A. Gonchar, Sergei Kh. Degtyarev

Translated from Biotechnologia (russ.). 2006. N 4. P. 31-35



A novel restriction endonuclease GlaI from the bacterial strain GL29 has been isolated and characterized. The enzyme recognizes methylated DNA sequence 5’-G(5mC)↓GC-3’ and cleaves it as indicated by arrow. Due to its ability to cleave only modified DNA GlaI may find a practical application in genetic engineering experiments as well as in determination of DNA methylation status



INTRODUCTION

As a rule type II restriction - modification (RM) system includes two enzymes - restriction endonuclease (RE) and DNA methyltransferase (M., MTase). Type II RE recognizes a short DNA sequence (usually 4-8 bp) and cuts it within or nearby this recognition site. Bacterial MTase methylates the recognition sequence protecting host DNA from cleavage by a cognate restriction enzyme whereas a foreign unmethylated DNA is cleaved by RE.
However, there are several restriction endonucleases presenting in a bacterial cell without cognate DNA methyltransferases. These enzymes belong to so called IIM subtype and cleave methylated recognition sequence only. At present time there are two known restriction enzymes of this type. DpnI restriction enzyme recognizes and cleaves 5'-G(6mA)↑TC-3' [1] and BisI restriction enzymes cleaves 5'-G(5mC)↑NGC-3' [2].
In this article we describe a new restriction enzyme GlaI which recognizes nucleotide sequence 5'-G(5mC)↑GC-3' and requires only Mg2+ ions as a cofactor. Likewise DpnI and BisI, GlaI belongs to subtype IIM restriction endonucleases [3].



MATHERIALS AND METHODS



Strain growth

The strain was grown at 28°C in 20 l fermenter (LKB, Sweden) with aeration (10 l/min). Nutritious medium included 1% tryptone (Organotechnie, France), 0.5% yeast extract (Organotechnie, France), 0.5% NaCl and 0.05% MgCl2 (pH 7.5). At a late logarithmic stage of growth bacterial cells were precipitated by centrifugation. The precipitate of wet cells was stored at -20°C.



Purification of GlaI

The enzyme purification was performed based on the column chromatography technique. 100 g of biomass were suspended in 300 ml of buffer A (10 mM Tris-HCl, pH 7.5, 0.1 mM EDTA, 7 mM β-mercaptoethanol) containing 0.1 M NaCl, 0.3 mg/ml lysozyme, 0.1 mM phenilmethylsulfonyl flouride (PMSF), 0.1% triton X100. Cells were disrupted by ultrasonic treatment. The cell debris was removed by centrifugation at 12000 rpm for 30 min.
Supernatant was loaded onto 100 ml phosphocellulose P-11 ("Whatman", England) column pre-equilibrated with buffer A containing 0.1 M NaCl. The column was washed with 200 ml of buffer A containing 0.1 M NaCl. The gradient 0.1-0.65 M NaCl in buffer A (1000 ml) was applied for enzyme's elution and 10 ml fractions were collected. The elution fractions with GlaI activity were pooled and dialysed against 20 volumes of buffer A. Dialysed fractions were loaded onto 15 ml heparine-sepharose ("Bio-Rad", USA) column pre-equilibrated with buffer A containing 0.05 M NaCl. The column was washed with 30 ml buffer A containing 0.05 M NaCl. Elution was performed using 0.05-0.45 M NaCl gradient in buffer A (300 ml) and 5 ml fractions were collected. The fractions with GlaI activity were pooled together and were loaded onto 4 ml hydroxyapatite column pre-equilibrated with buffer containing 0.01 M K2HPO4, pH 7.2, 0.1 mM EDTA, 7 mM β-mercaptoethanol, 0.05 M NaCl. The column was washed with 10 ml equilibrating buffer. The enzyme was eluted with 0.01-0.4 M K2HPO4 gradient (100 ml) containing 0.05M NaCl, 0.1 mM EDTA, 7 mM β-mercaptoethanol. 2.5 ml fractions were collected, analyzed and those of them with the most enzymatic activity were pooled and dialysed against 20 volumes of storage buffer (50% glycerol, 10 mM Tris-HCl, pH 7.55, 0,1 mM EDTA, 7 mM β-mercaptoethanol, 0.2 M NaCl). Purified preparation of GlaI was stored at -20°C.



Enzyme assay

A plasmid pHspAI was used as a DNA substrate for detection of GlaI enzymatic activity. This plasmid has been obtained by introduction of HspAI DNA fragment carrying gene of HspAI DNA methyltransferase into pUC19 plasmid. The activity of GlaI was measured in 50 μl of a reaction mixture containing pHspAI DNA. Reaction mixture included 1 ÷g of pHspAI plasmid DNA, 33 mM Tris-acetate, pH 7.9, 10 mM magnesium acetate, 66 mM potassium acetate, 1mM DTT. After incubation for one hour at 37oC the reaction was terminated by addition of 10 μl stop solution. One unit of GlaI activity is determined as the amount of enzyme required to complete cleavage of 1 μg pHspAI plasmid DNA for 1 hour at 37ºC in a 50 μl of a reaction mixture.
The DNA fragments were resolved by electrophoresis in 1% and 2% agarose gels.



Determination of the recognition sequence and the cleavage position

The recognition sequence was determined based on the comparison of pHspAI digestion pattern by GlaI with theoretically predicted cleavage pattern for RE recognizing 5'-GCGC-3'. The recognition sequence was confirmed by GlaI cleavage of synthetic oligonucleotide duplexes.
To get the complete pHspAI DNA digestion the preparation of GlaI was concentrated by Vivaspin 500 concentrator (Sartorius). High concentration GlaI preparation was added to 20 μl of reaction mixture with 1 μg pHspAI plasmid DNA and incubated for 1 hour at 37°C.
The cleavage position was determined by digestion of [32P]-labeled oligonucleotides containing the modified recognition sequence 5'-GCGC-3'. Oligonucleotide fragments separation was performed by electrophoresis in 20% PAAG (Tris-borate buffer with 7M urea).



RESULTS AND DISCUSSION

Growth of bacterial strain GL29 in a nutrious medium allows us to harvest approx. 5 g/l of cells. GlaI was isolated from frozen cells by several chromatographic steps as described in "Materials and methods". The yield of GlaI final preparation was 1.8 ml with concentration 100 u/ml.
GlaI doesn't cleave any standard substrates including lambda (dam+, dcm+ and dam-, dcm-) and T7 phage DNAs, Adenovirus-2 DNA, pUC19 and pBR322 plasmid DNAs. We have also tested several other plasmids as possible substrates for GlaI which carry genes of some DNA methyltranspherases modifying the cytosine residues in definite DNA sequences: M.Fsp4HI (recognition sequence 5'-G(5mC)NGC-3'), M.FauIA and M.FauIB (recognition sequences CCCGC and GCGGG, respectively). We have not observed cleavage of these DNAs. GlaI cleaves a plasmid pHspAI, which carries the gene of HspAI DNA methyltransferase (recognition sequence 5'-GCGC-3'). This plasmid was obtained by ligation of 1.4 kb EcoRI fragment of Haemophilus species A1 DNA and pUC19 vector linearized by R.EcoRI. The insertion of pHspAI comprized a gene of HspAI MTase.
A primary amino acid structure of M.HspAI deduced from the nucleotide sequence of M.HspAI gene shows a very high homology with M.HinP1I - 99% identity (Fig. 1). Since M.HinP1I modifies C5-position of inner cytosine in 5'-GCGC-3' sequence [4] we can conclude that M.HspAI methylates this site at the same position and the modified sequences 5'-G(5mC)GC-3' are present in the pHspAI DNA.

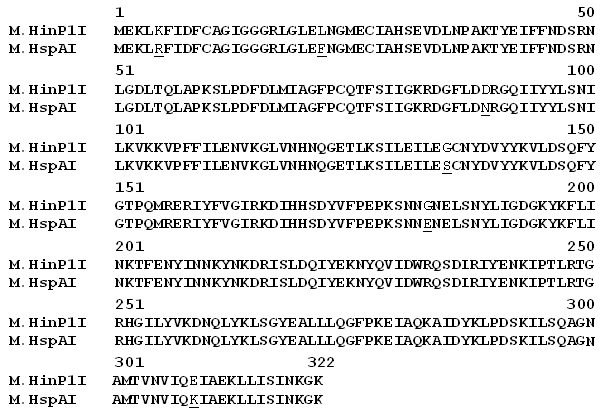

Fig. 1.Alignment of HspAI and HinPI DNA methyltransferases primary structures. Identity is about 99%. Identical residues are given in bold.






The DNA fragments pattern produced by GlaI cleavage of pHspAI DNA corresponds to the predicted one for pHspAI cleavage by RE cutting a recognition sequence 5'-GCGC-3' (Fig 2). These data indicate that the enzyme GlaI recognizes and cleaves nucleotide sequence 5'-G(5mC)GC-3'.

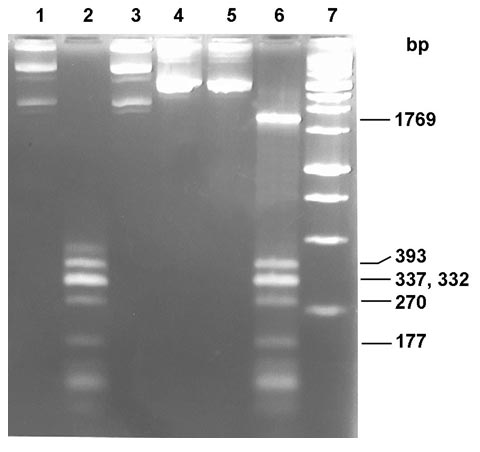

Fig. 2. GlaI and HspAI cleavage of plasmid DNAs.

Lanes: 1 - pUC19 plasmid DNA, 2 - pUC19 plasmid DNA incubated with HspAI, 3 - pUC19 plasmid DNA incubated with GlaI, 4 - pHspAI plasmid DNA, 5 - pHspAI plasmid DNA incubated with HspAI, 6 - pHspAI plasmid DNA incubated with GlaI, 7 - DNA fragment size marker 1Kb (SibEnzyme). Theoretical lengths of pHspAI fragments produced by cleavage at 5'-GCGC-3' sites are shown at right. Electrophoresis has been run in 2% agarose gel




For final verification of GlaI recognition site and its cleavage position determination we have used synthetic oligonucleotide duplexes containing or not containing modified cytosine residues (5'-GCGC-3' sites are underlined):

    1: 5'-GTGCATGG(5mC)GCCTATGCG-3'
    2: 5'-CGCATAGG(5mC)GCCATGCAC-3'
    3: 5'-GTGCATGGCGCCTATGCG-3'
    4: 5'-CGCATAGGCGCCATGCAC-3'

The results of these oligonucleotide duplexes cleavage are shown on Fig. 3. As expected C5-modified duplex 1/2 is cut with GlaI, whereas unmethylated duplex 3/4 isn't cut.
Comparison of oligonucleotides cleavage by GlaI and PspN4I (recognition sequence 5'-GGN^NCC-3') clearly indicates that ClaI and PspN4I cleave DNA in the same way.
Hence, GlaI recognizes and cleaves the following sequence as indicated by the arrows:

5'- G (5mC)↑ G C -3'
3'- C G ↑(5mC) G -5'

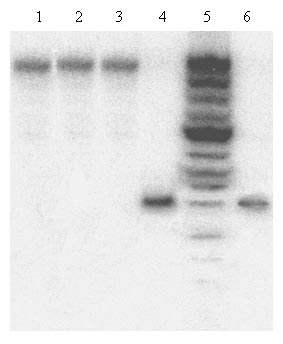

Fig. 3. The cleavage of oligonucleotide duplexes with GlaI and PspN4I restriction endonucleases. Labeled chains in duplexes are marked with *. Lanes: 1 - duplex 3*/4, 2 - duplex 3*/4 incubated with GlaI, 3 - duplex 1*/2, 4 - duplex 1*/2 incubated with GlaI, 5 - duplex 1*/2 incubated with Exonuclease III (marker of DNA fragment length), 6 - duplex 1*/2 incubated with PspN4I






A detailed study of GlaI ability to cleave sites with different methylation patterns will be presented in other publications.
So, in this work we present a novel RE GlaI belonging to a rare group of restriction enzymes which recognize a methylated nucleotide sequence only. The known members of this group are listed in Table I. A comparison of presented data shows that the recognition sequences of all three enzymes share an obvious similarity: i) the second nucleotide in recognition sites is modified and ii) the cleavage occurs after methylated base. The recognition sequences of BisI and GlaI differ only by one indefinite nucleotide (N) located in the middle of the site. Besides, GlaI and DpnI cut recognition sequences producing blunt ends whereas GlaI and DpnI analogues (recognizing the same but unmethylated site) cut DNA producing sticky ends.





   DpnI    G(6mA)↑TC    MboI - ↑GATC, ChaI - GATC↑, BstKTI - GAT↑C
   BisI    G(5mC)↑NGC    Fnu4HI - GC↑NGC, BthCI - GCNG↑C
   GlaI    G(5mC)↑GC    HhaI - GCG↑C, HinP1I - G↑CGC

Table I. Recognition sites of known members of type IIM restriction enzymes

The similarity of DpnI, BisI and GlaI recognition sites may reflect the common evolutionary origin of known type IIM restriction enzymes.
As it was mentioned earlier [2] a role of restriction enzymes specific for methylated DNA may be considered as a protection of bacterial cell from penetration of modified bacteriophage's DNA. It's well known that some bacteriophages contain genes of DNA-methyltransferases and these enzymes activity result in phage DNA methylation [5].
GlaI may be useful for determination of eukariotic DNA methylation status because its recognition site contains methylated CG sequence specific for eukaryotic genomes.

Authors thank Alexandra Ahmedova for help in purification of GlaI.



SibEnzyme Ltd.: Patent RU 2287012 C1



REFERENCES

  1. Lack S., Greenberg B. J. (1975) Biol. Chem. 250: 4060-4066.
  2. Chmuzh E. V., Kashirina J. G., Tomilova J. E., Mezentzeva N. V., Dedkov V. S., Gonchar D. A., Abdurashitov M. A., Degtyarev S. Kh. (2005) Biotekhnologia (Russian) 3: 22-26 [english online version].
  3. Pingoud, A., and Jeltsch A. (2001) Nucleic Acids Res. V.29, P.3705-3727
  4. Roberts, R.J., Vincze, T., Posfai, J., Macelis, D. (1988) Nucleic Acids Res. V.33, P.230-232
  5. Gunthert, U., Lauster, R., and Reiners, L. (1986) Eur. J. Biochem. V.159,P.485-492.
